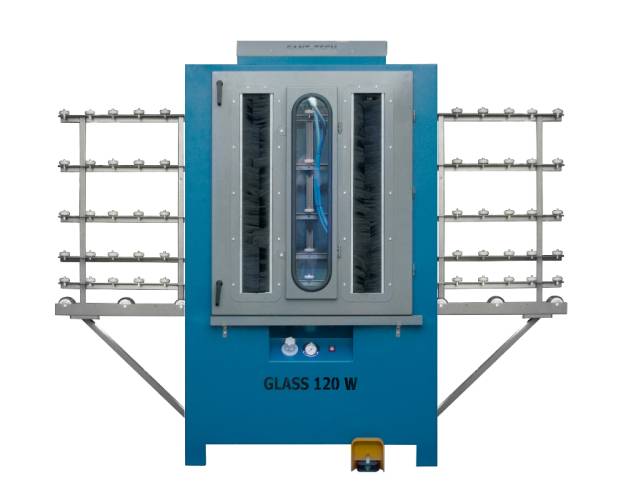

Blasting cabinet (sandblasting machine) Glass-120W

GLASS 120W is a cabinet, dust free sandblaster best suited for sandblasting small flat surfaces and objects, such as door glass, cabinet windows, mirrors and small gadgets.

Blasting cabinet Glass-120W

KEY FEATURES

GLASS 120W is a cabinet, dust free sandblaster best suited for sandblasting small flat surfaces and objects, such as door glass, cabinet windows, mirrors and small gadgets. Additional side door make it easy to handle small objects. The injection sandblasting cabinet is connected to the closed-circuit passageway conveying the blasting media. Sandblasting materials are carried by a manual conveyor belt. The cabinet requires an additional dust collector / dedusting unit.

Additional features:

  • durable sheet metal design (2 mm thick)
  • powder coating (hammer effect)
  • cabinet with front opening door

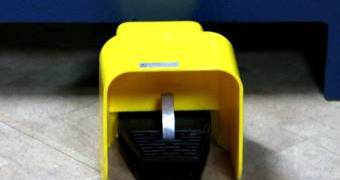

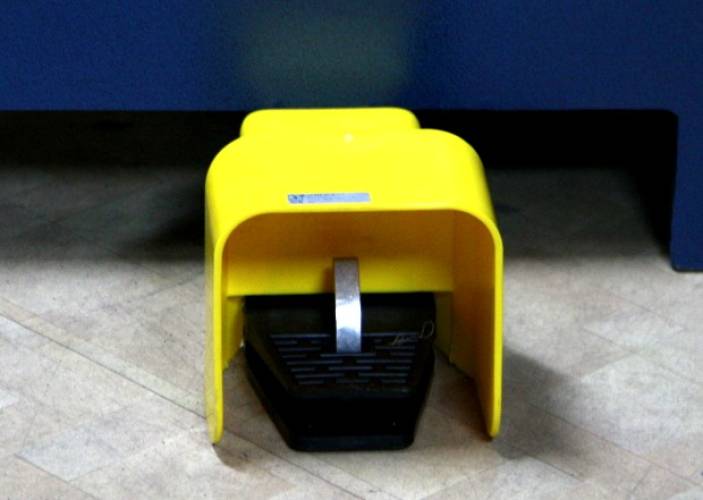

  • foot pedal control

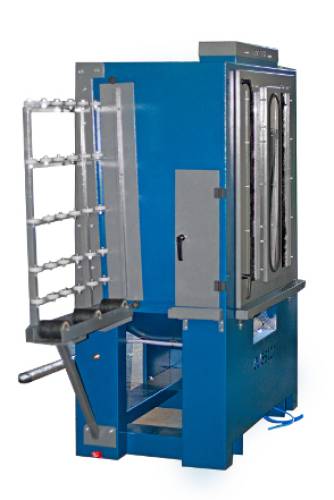

  • additional side door for easy sandblasting of small objects
  • additional brushes ensuring that the cabinet is sealed tight during sandblasting – 100% dust-free operation


Standard equipment:

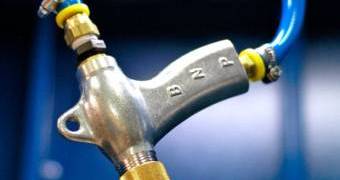

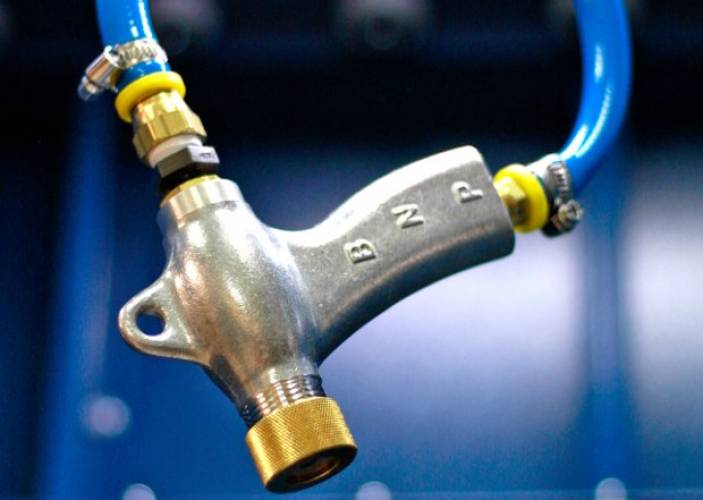

  • CLEMCO BNP Sandblast Gun with a a tungsten carbide blast nozzle
  • abrasive-resistant sandblasting hoses
  • Japanese pneumatic control valves (manufactured by CKD)

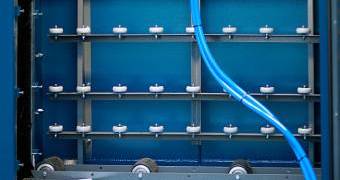

  • rubber coated rollers (for sandblasted sheets of glass or stone slabs)
  • overhead lighting (double fluorescent lamp)
  • end brushes preventing the blasting media and dust from issuing from the cabinet during the blasting process
  • double front window (2 glass panes)
    - outer pane protected with non-stick technology (ClearShield®)
    - standard inner pane

Technical data:

Measurements /width x height x depth/ 2600 x 2000 x 800 mm
Max dimensions of a sandblasted object 1100 x 2000 mm
Workspace 1150 x 1100 mm
Air consumption from 450 l/min
Recommended working pressure 4-6 bar
Sandblasting process manual
Weight 190 kg



Blasting cabinet Glass-120W

Blasting cabinet Glass-120W

Blasting cabinet Glass-120W
