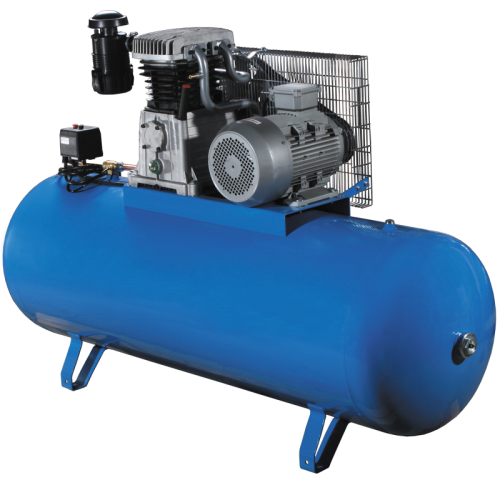

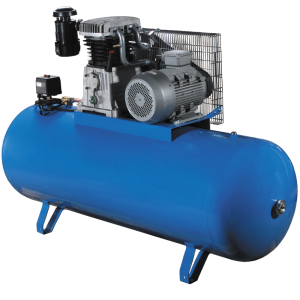

Piston Air Compressor 7,5 kW - 1210l/min 81.02.075121
GD series piston air compressors constitute a more advanced and more reliable solution than similar screw compressors with direct drives.
KEY FEATURES
GD series piston air compressors constitute a more advanced and more reliable solution than similar screw compressors with direct drives.
The main advantage of this model is its construction using the V-Belt to allow for two separate cooling systems – one for the motor and one for the pump.
GD series piston air compressors are characterized by longer service life and can operate within the range of 8-10 bar.
Technical data:
| Dimensions [length x width x height] | 2030 x 140 x 680 mm |
| Max. working pressure | 10 bar |
| Performance | 1210 l/min |
| Engine power | 7,5 kW |
| Engine power | 400 V |
| Tank capacity | 500 l |
| Noise | 82 dB |
| Weight | 285 kg |
Additional features:
- Cast iron tank
- Two compression levels
- Pressure reducer with manometer and instant connect fittings
